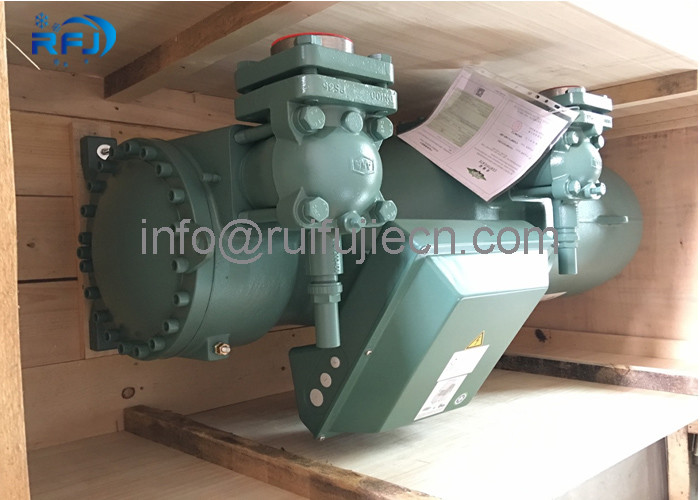

240HP Air Conditioning Compressor Screw Compressors Csh9593-240y-40D

Product Categories

Shenzhen Ruifujie Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : Disscussed

Supply Ability : 100 pieces/week

Delivery Time : 7 days

Packaging Details : wooden box

Payment Terms : T/T,Western Union,

weight : 1370kg

Type : compressor

Model Number : CSH9593-240Y-40D

warranty : 1 year

Application : Refrigeration Parts

Contact Now

240HP Air Conditioning Compressor Screw Compressors Csh9593-240y-40D

Technical Specifications

Specification	SI Units	IP Units
Displacement (2900 RPM 50 HZ)	910 m³/h	32127 CFH
Displacement (3500 RPM 60 HZ)	1098 m³/h	38785 CFH
Weight	1370 kg	3022 lb
Max Pressure (LP/HP)	19/28 bar	275/400 psi
Connection Suction Line	DN 125	5"
Connection Discharge Line	DN 100	DN 100
Motor Voltage (more on request)	380-415V PW-3-50HZ	440-480V PW-3-60HZ UL
Max Operating Current	360.0 A	360.0 A
Starting Current (Rotor locked)	650.0 A D/2029.0 A DD	660.0 A D/2059.0 A DD
