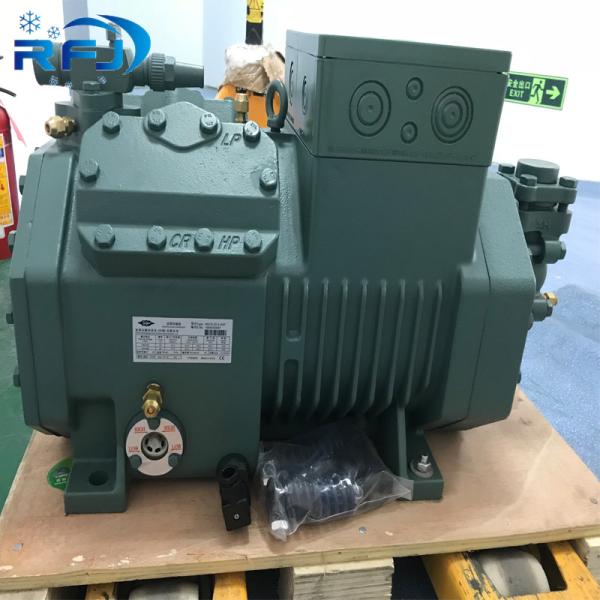

6GE-34Y 30HP Semi Hermetic Refrigeration Compressor

Model Number : 6GE-34Y/6G-30.2Y

Certification : ROHS, CE

Place of Origin : China

MOQ : 1 piece

Price : US$712-1000/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000Pieces/Year

Delivery Time : 5-7 Days

Packaging Details : Standard Wooden Package

Type : Refrigeration Compressor

Application : Refrigeration Parts

Power : 30HP

Refrigerant : R404 R407C R134A

Color : Green

Warranty : 1 Year

Power Source : AC POWER

Contact Now

TECHNICAL DATA

	SI	IP
Displacement (1450 RPM 50Hz)	126,8 m³/h	4477.9 CFH
Displacement (1750 RPM 60Hz)	153,0 m³/h	5403.1 CFH
No. of cylinder x bore x stroke	6 x 75 mm x 55 mm	6 x 2.95 inch x 2.17 inch
Weight	228 kg	503 lb
Max. pressure (LP/HP)	19 / 32 bar	275 / 464 psi
Connection suction line	54 mm - 2 1/8''	54 mm - 2 1/8''
Connection discharge line	35 mm - 1 3/8''	35 mm - 1 3/8''
Oil type R134a/R407C/R404A/R507A/R407A/R407F	BSE32(Standard) \| R134a tc>70°C: BSE55 (Option)	BSE32(Standard) \| R134a tc>155°F: BSE55 (Option)
Oil type R22 (R12/R502)	B5.2(Option)	B5.2(Option)
Oil type R1234yf/R1234ze	BSE32 (Standard) \| R1234ze tc>70°C & to>0°C: BSE55 (Option) \| R1234ze to>15°C: BSE85K (Option)	BSE32 (Standard) \| R1234ze tc>70°C & to>0°C: BSE55 (Option) \| R1234ze to>15°C: BSE85K (Option)

EXTENT OF DELIVERY (STANDARD)
	SI	IP
Motor protection	SE-B2, CM-RC-01(Option)	SE-B2
Enclosure class	IP54 (Standard), IP66 (Option)	IP54 (Standard), IP66 (Option)
Vibration dampers	Standard	Standard
Oil charge	4,75 dm³	167.2 fl oz
Discharge shut-off valve	Standard	Standard
Suction shut-off valve	Standard	Standard

AVAILABLE OPTIONS
	SI	IP
Connection suction line	Option	Option
Discharge shut-off valve	Option	Option
Discharge gas temperature sensor	Option	Option
Start unloading	Option	Option
Capacity Control - infinite	100-10% (Option)	100-10% (Option)
Refrigerant Injection (RI)	Option	Option
Oil service valve	Option	Option
Capacity control	100-66-33% (Option)	100-66-33% (Option)
Additional fan	Option	Option
Crankcase heater	140 W (Option)	140 W (Option)
Oil pressure monitoring	MP54 (Option), Delta-PII	MP54 (Option), Delta-PII

MOTOR DATA
	SI	IP
Motor version	2	2
Starting current (Rotor locked)	141.0 A Y / 233.0 A YY	245.0 A
Motor voltage (more on request)	380-420V PW-3-50Hz	440-480V Y-3-60Hz UL
Max operating current	65.5 A	65.5 A

SOUND MEASUREMENT
	SI	IP
Sound power level (-10°C / 45°C)	83,3 dB(A) @50Hz	85,8 dB(A) @60Hz
Sound pressure level @ 1m (-10°C / 45°C)	75,3 dB(A) @50Hz	77,8 dB(A) @60Hz
Sound power level (-10°C / 45°C) R134a	81,3 dB(A) @50Hz	83,8 dB(A) @60Hz
Sound power level (-35°C / 40°C)	89,5 dB(A) @50Hz	92 dB(A) @60Hz
Sound pressure level @ 1m (-35°C / 40°C)	81,5 dB(A) @50Hz	84 dB(A) @60Hz

6GE-34Y 30HP Semi Hermetic Refrigeration Compressor

Product Tags:

30HP Bitzer Semi Hermetic Compressor

6GE-34Y

6GE-34Y 30HP Semi Hermetic Refrigeration Compressor Images
